Pressure Gauge – DTG5000 series

Name: Pressure Gauge - DTG5000 series
Brand: GPS LTD
SKU: DTG-5000-XX
Availability: InStock

£50.00 – £150.00

people are viewing this right now

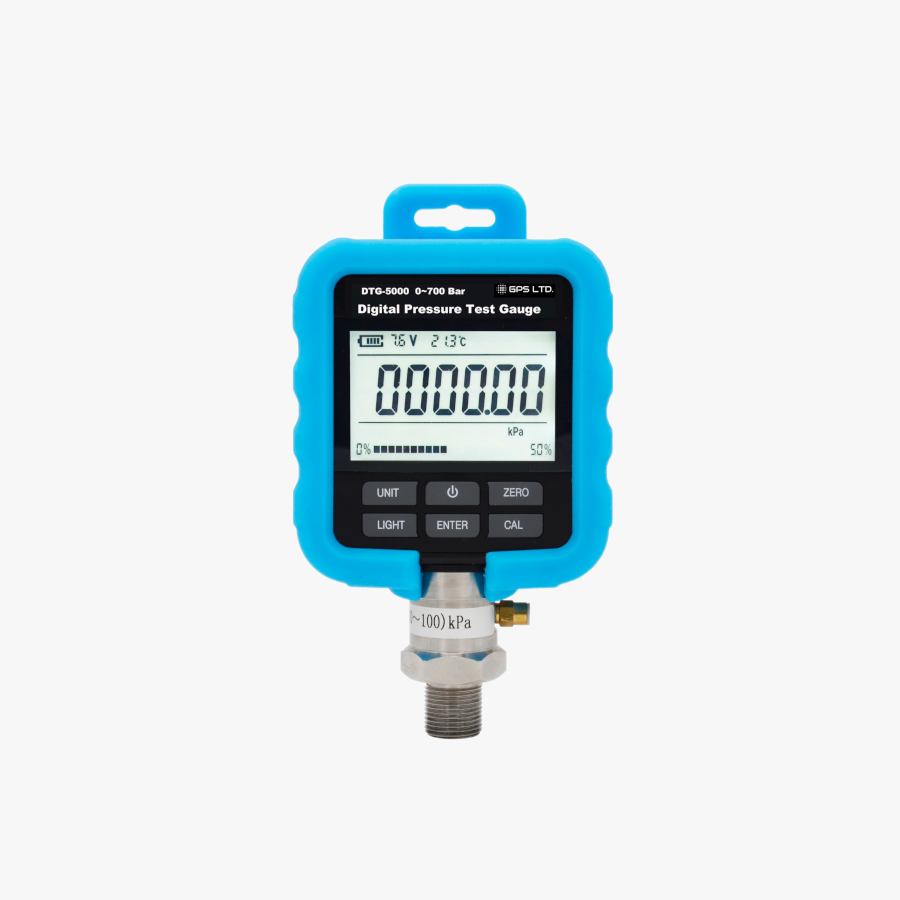

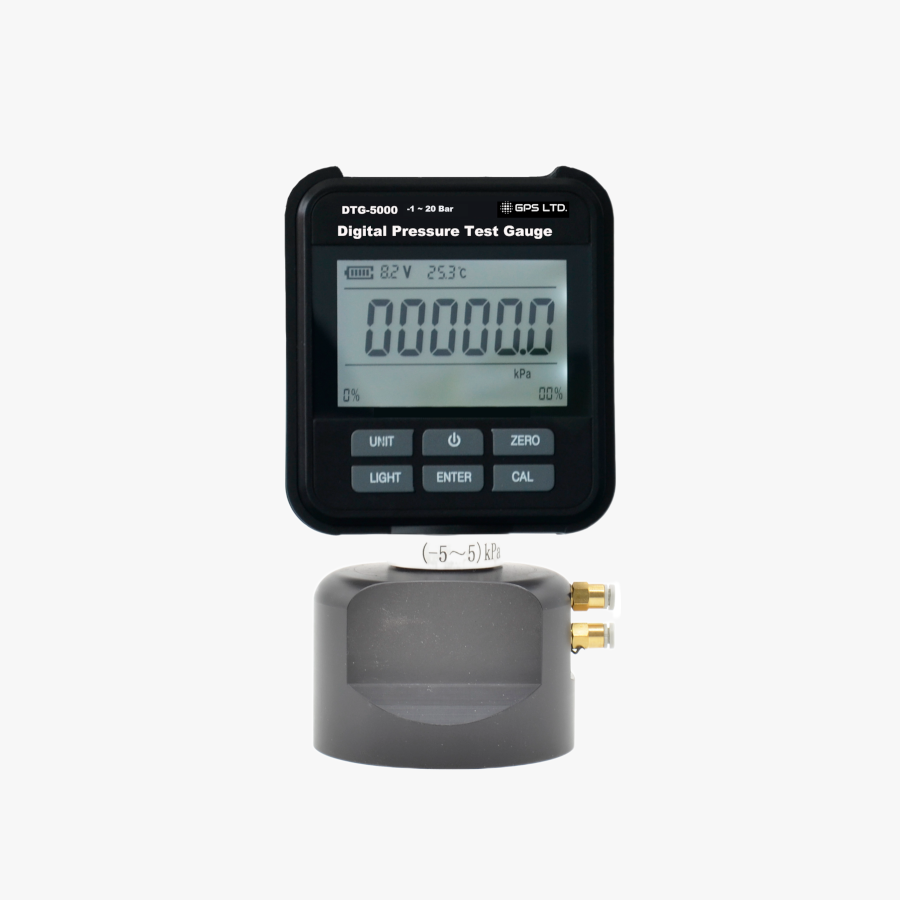

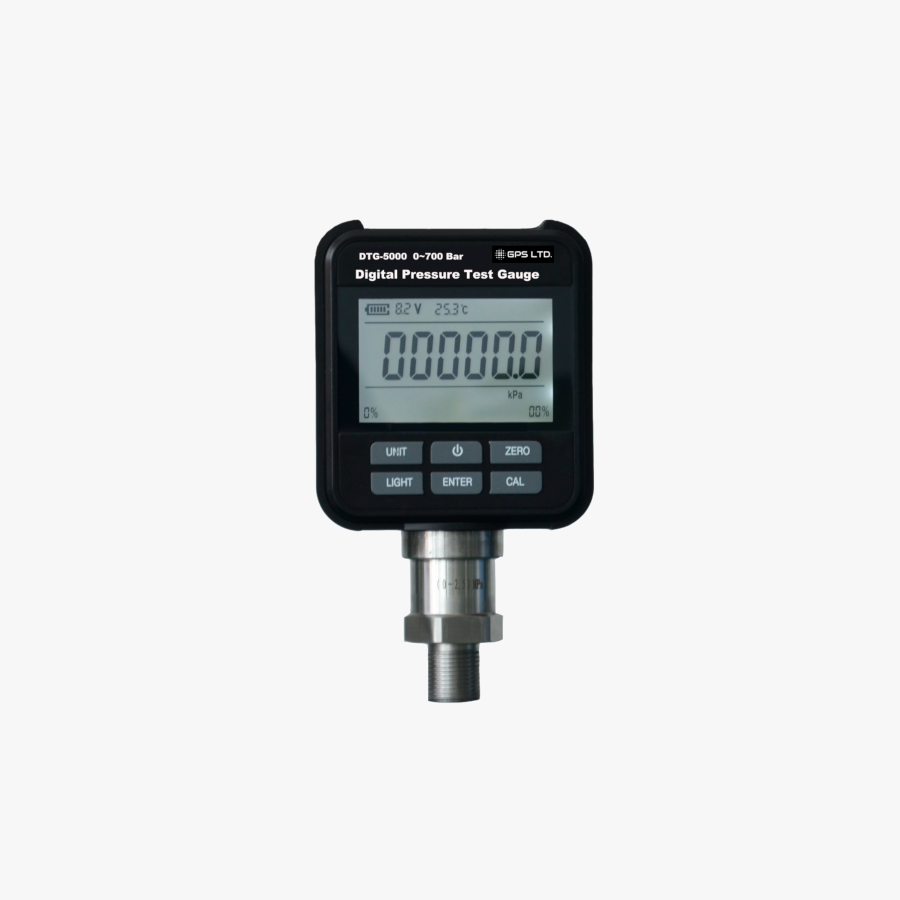

The DTG5000 series pressure gauge is a new microprocessor controlled digital pressure gauge which offer high precision, stability and functionality in a compact and robust solution package. The gauge is powered by a rechargeable battery and offers an autopower off function in order to preserve the battery life. The sensor technology combined with advance designed feature results in an high accurate yet affordable digital pressure gauge. With a number of pressure ranges available, the DTG-5000 series offers an unbeatable cost effective solution for accurate process monitoring and control.

Guaranteed Safe Checkout

Free UK shipping on all orders over £200
Delivers in: 3-7 Working Days Shipping & Return

SKU: DTG-5000-XX Categories: Electronics Parts, Oscilloscopes & Accessories Brand: GPS LTD

Description

An ideal low cost solution to accurate digital pressure testing

The DTG-5000 series is designed for both stationary and mobile measurement, display & data logging of pressure. They can be used as reference pressure gauges to simplify the checking, adjustment and calibration of other pressure measurement devices directly on site is a portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors, the DTG-5000 series provides an accurate, reliable and economic solution for pressure application in the industries of power, chemical, petrol, metallurgy, metering and more.

Pressure range up to 2500 bar

Accuracy: ±0.025% F.S, ±0.05% F.S

Work medium: Oil, water & non-corrosive gases

Over pressure alarm function

6 digit large LCD with blacklight

Pressure unit: Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, mmH2O, mmHg

Compensated temperature: (0- 50) °C

Pressure Connection: M20*1.5, or 1/4”NPT male thread (or customised)

7.4V lithium rechargeable battery and special charger, battery life usage: 80 hours

Case material: ABS Plastic

Downloads:

datasheet

Additional information

Range	-1 to 2500 bar (refer to pressure ranges selection sheet)
Accuracy	±0.025%F.S, ±0.05%F.S
Units	Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, mmH2O, mmHg
Tempertaure Compensation Range	0-50 °C
Display	6 digits large LCD with backlight
Pressure Connection	M20*1.5, or 1/4''NPT male thread (or customised)
Battery	7.4V lithium with specific charger, battery life: 80 hours
Case Material	ABS Plastic
Dimensions	Φ95mmx49mm Total Height: 166mm
Weight	0.75 kg
